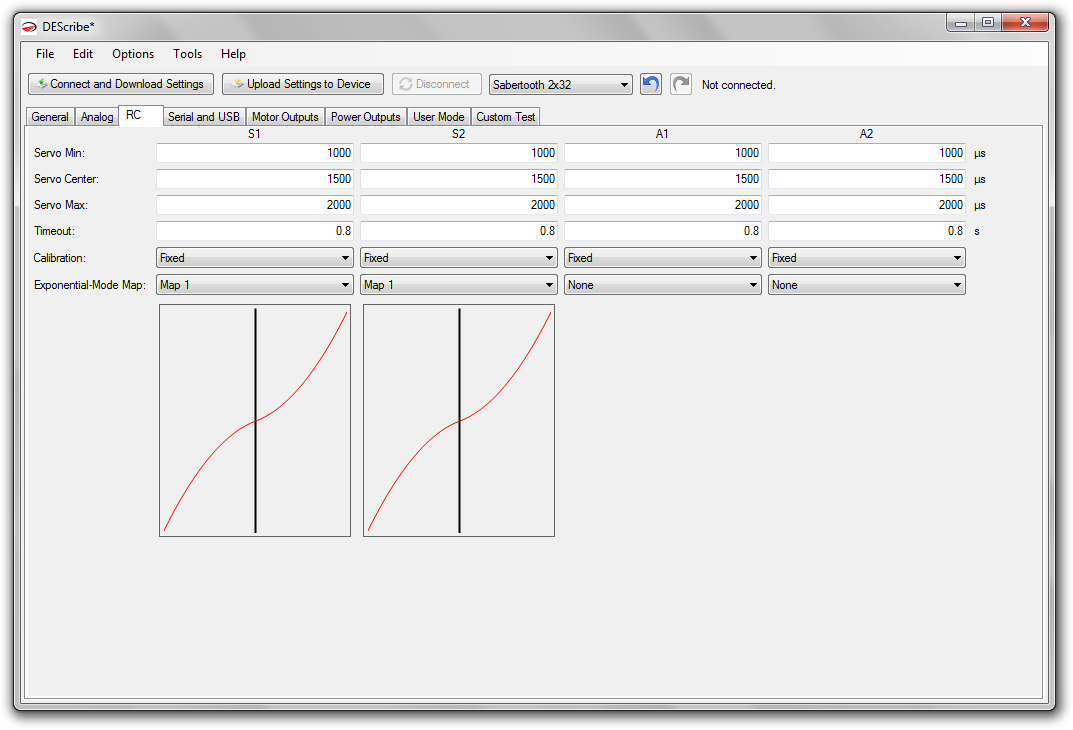

RC

Custom Range

You can enter a custom range here. Minimum to center is reverse motion (-100% to 0%), and center to maximum is forward motion (0% to 100%).

Timeout

The amount of time to wait for an RC pulse before assuming the signal has been lost.

Calibration

If you have selected Fixed calibration on the DIP switches, the calibration mode specified here is used. The modes are:

Fixed

The range specified in this tab is used. It does not change based on positions received from the RC transmitter.

Automatic

The center is determined by the initial stick position received from the RC transmitter. The range is determined from the minimum and maximum positions received.

Joystick

The center is determined by the initial stick position received from the RC transmitter. The minimum and maximum specified in this tab are used.

Saved

This calibration mode is like Automatic, but the detected range is saved and becomes a Fixed range the next time the Sabertooth is powered on.

Exponential-Mode Mapping

If you have selected Exponential response on the DIP switches, the map selected here is used. Maps can be edited in the General tab.
