Voltage Regulator Breakout Board
Price: 9.99
Weight: 6g / 0.2oz
International Shipping: 3.00
Find a local dealer

Lead Time
In stock

Product Description

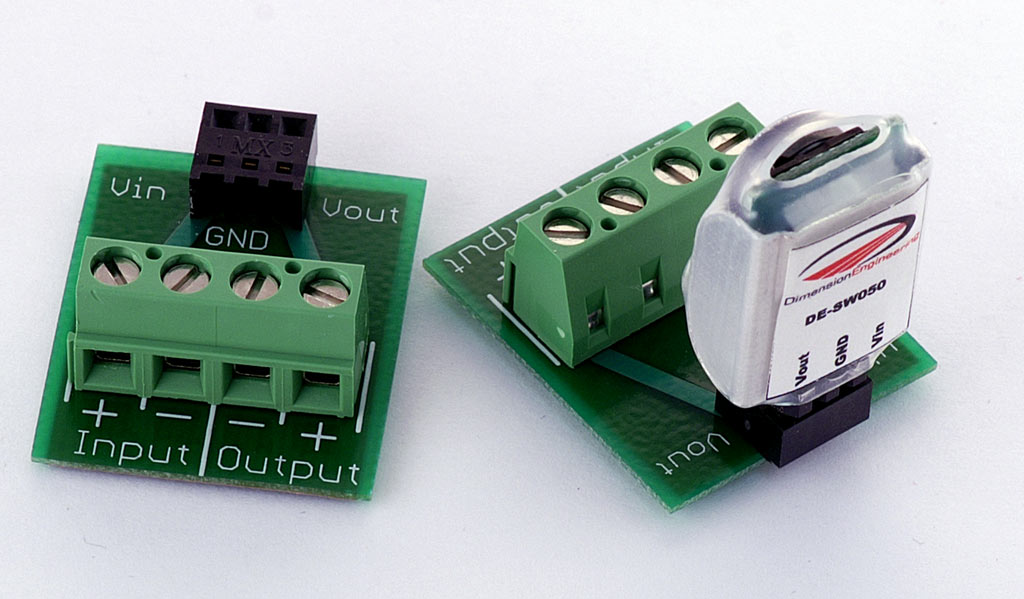

If you do not feel comfortable soldering, our voltage regulator breakout board can help. It extends the regulator's connection pins to a set of screw terminals that are easier to manipulate. To use the board, plug in the voltage regulator you want with the correct orientation. Then you can connect your power source and load by stripping wires and clamping them into the screw terminals.

Now you can power wireless cameras, lighting systems and much more with minimum hassle.

This breakout board can house our fixed regulators, adjustable regulators, AnyVolt Micro, and standard 78xx style linear regulators. The breakout board does not ship with any voltage regulators included.

Product Specs

Usage Example: Example 1.jpg

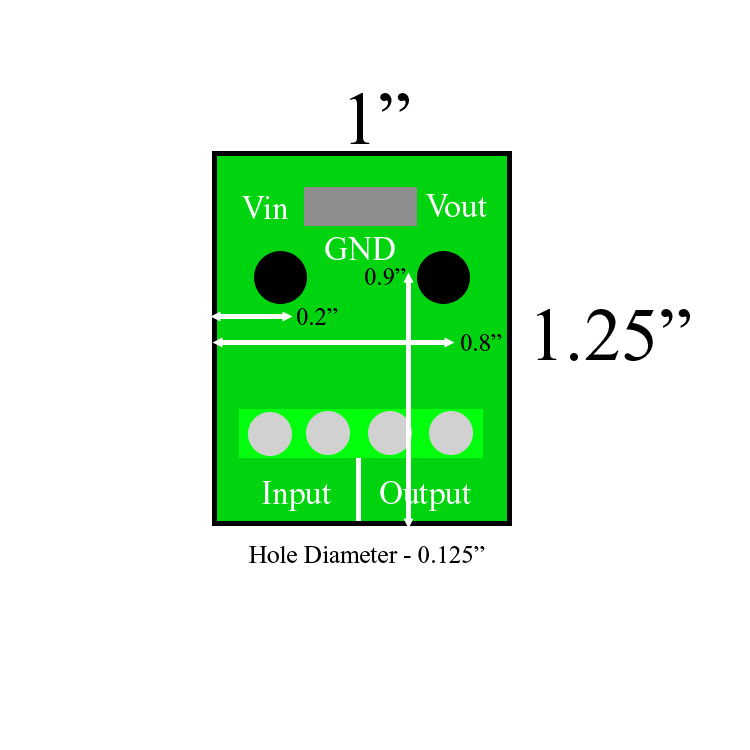

Other Information: Product Dimensions
