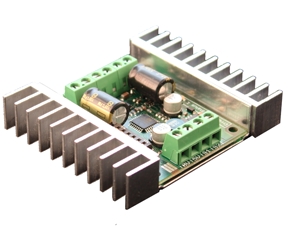

Sabertooth dual 12A motor driver
Price: 79.99
Weight: 60g / 2.1oz
International Shipping: 3.00

Lead Time
In stock

Product Description

This is the new version of the Sabertooth 2x10 motor controller. For information regarding the old part, click here.

The Sabertooth 2X12 is one of the most versatile, efficient and easy to use dual motor drivers on the market. It is suitable for medium powered robots - up to 30lbs in combat or 100lbs for general purpose robotics.

Out of the box, the Sabertooth can supply two DC brushed motors with up to 12A each. Peak currents of 25A are achievable for a few seconds.

Overcurrent and thermal protection means you'll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor.

Sabertooth allows you to control two motors with: analog voltage, radio control, serial and packetized serial. You can build many different robots of increasing complexity for years to come with a Sabertooth. Sabertooth has independent and speed+direction operating modes, making it the ideal driver for differential drive (tank style) robots and more.

The operating mode is set with the onboard DIP switches so there are no jumpers to lose. Sabertooth features screw terminal connectors - making it possible for you to build a robot without even soldering.

Sabertooth is the first synchronous regenerative motor driver in its class. The regenerative topology means that your batteries get recharged whenever you command your robot to slow down or reverse. Sabertooth also allows you to make very fast stops and reverses - giving your robot a quick and nimble edge.

Sabertooth has a built in 1A Switching 5V BEC that can provide power to a microcontroller or R/C receiver and a couple of servos. This built in BEC is almost identical in performance to our ParkBEC. The lithium cutoff mode allows Sabertooth to operate safely with lithium ion and lithium polymer battery packs - the highest energy density batteries available.

Sabertooth's transistors are switched at ultrasonic speeds (32kHz) for silent operation.

Use of our motor drivers with cheap AC adapters is not recommended. Use a battery or at least put a battery in parallel with a DC supply.

Need something a little more simple? Take a look at Sabertooth 2X12 R/C.

Product Specs

Model: Sabertooth 2X12
Specifications: 12A continuous, 25A peak per channel
Up to 24V in

Synchronous regenerative drive
Ultra-sonic switching frequency
Thermal and overcurrent protection
Lithium protection mode

Input modes: Analog, R/C, simplified serial, packetized serial

Size: 2.3” x 3” x .7”
59 x 75 x 17 mm
Applications: Combat robots up to 30lb
Normal and hobby robots up to 100lb
Differential drive robots
Electric vehicles, ride-on toys, scooters

Easy speed/direction control for pumps, conveyors, automation and any application that uses two brushed DC motors
Documentation: Sabertooth 2x12.doc (2.9mb)
Sabertooth 2x12.pdf (1.3mb)
Quick start guide.doc
Quick start guide.pdf
Sabertooth DIP Switch Wizard
Motor driver efficiency comparison

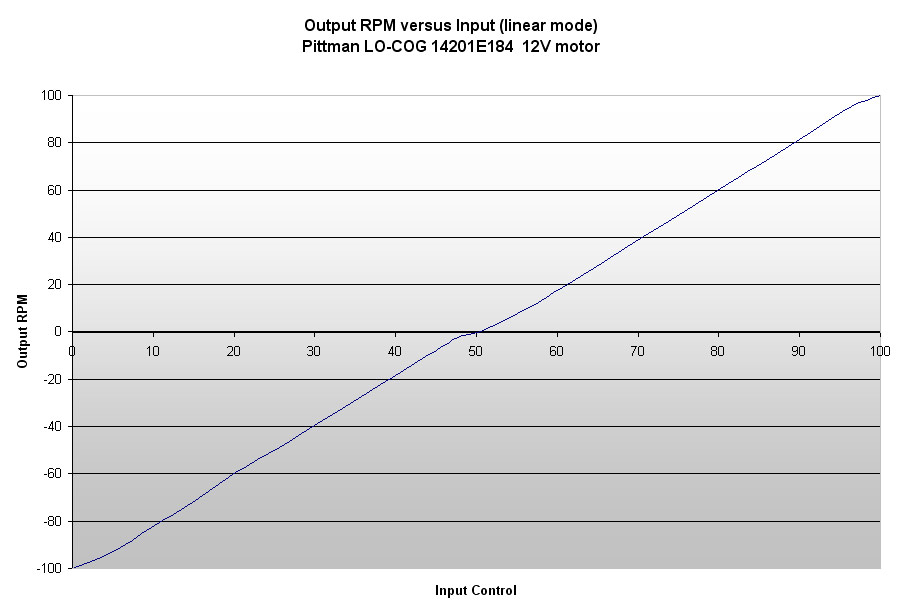

Sample RPM versus throttle graph DEScribe Manual
Software: Arduino Libraries
.NET (C#, VB) Library
DEScribe PC Software
Application notes: Using a SyRen/Sabertooth with an ATX (or similar) DC power supply

Packetized mode with a PIC and Sabertooth

Using Sabertooth with Roborealm
Customer projects: Brad Hedges's C Sabertooth driver

Beaverhausen's mobile robot

Aaqil's robot 1 2 3

Show us yours!
